SL-U Series spiral grading screen

current location：home>product Center
SL-USeries spiral grading screen

Performance and characteristics:：

SL-U series spiral classifier is an improved product of planar spiral screening machine, mainly used for material classification, suitable for screening and grading wet sticky materials in coal preparation plants, power plants, metallurgy, mining and other industrial sectors. The machine adopts a combined structure and has the following characteristics:

1、The spiral shaft is used as the material direct screening mechanism, which has a strong structure, wear resistance, and does not block the sieve holes when handling wet and sticky coal. The screening efficiency is a bit high。

2、Feed particle size is large (< 300), which is conducive to simplifying the grading process and reducing screening equipment。

3、The material advance speed is fast, the processing capacity per unit area is large, and the processing capacity is more than twice that of the vibrating screen under the same conditions。

4、Equipment operation balance, no dynamic load, low noise。

5、Since the linear velocity of the helical shaft in the tangential direction on both sides of the screen hole is opposite, no material crushing occurs。



6mmStandard sieve series varieties and main technical parameters：

order
No.		 Main technical parameters Screen area throughput screening efficiency Feed particle size Feed moisture Screen inclination rank Sieve machine external dimensions weight Motor power
Standard series varieties m² T/H % mm % degree segment Length × width × height(m) T. KW
1 SL-U6/2-C 12 200 95 0~200 >8 0° 4 7.6×3.3×3 20.3 7.5×8
300 <8
2 SL-U6/2-B 9 150 90 >8 3 5.8×3.3×2.3 15.2 7.5×6
250 <8
3 SL-U6/2-A 6 120 85 >8 2 4×3.3×1.6 10.2 7.5×4
100 <8
4 SL-U6/1.5-C 9 100 95 >8 4 7.6×2.8×3 15.5 7.5×8
150 <8
5 SL-U6/1.5-B 6.75 80 90 >8 3 5.8×2.8×2.3 11.5 7.5×6
120 <8
6 SL-U6/1.5-A 4.5 50 85 >8 2 4×2.8×1.6 7.8 7.5×4
80 <8
7 SL-U6/1-C 6 40 95 >8 4 7.6×2.5×3 13.5 5.5×8
60 <8
8 SL-U6/1-B 4.5 30 90 >8 3 5.8×2.5×2.3 10 5.5×6
50 <8
9 SL-U6/1-A 3 25 85 >8 2 4×2.5×1.6 6.7 5.5×4
40 <8

8mmStandard sieve series varieties and main technical parameters：

order
No.		 Main technical parameters Screen area throughput screening efficiency Feed particle size Feed moisture Screen inclination rank Sieve machine external dimensions weight Motor power
Standard series varieties m² T/H % mm % degree segment Length × width × height(m) T. KW
1 SL-U8/2-C 12 250 95 0~200 >8 0° 4 7.6×3.3×3 20.3 7.5×8
350 <8
2 SL-U8/2-B 9 200 90 >8 3 5.8×3.3×2.3 15.2 7.5×6
300 <8
3 SL-U8/2-A 6 150 85 >8 2 4×3.3×1.6 10.2 7.5×4
200 <8
4 SL-U8/1.5-C 9 120 95 >8 4 7.6×2.8×3 15.5 7.5×8
180 <8
5 SL-U8/1.5-B 6.75 100 90 >8 3 5.8×2.8×2.3 11.5 7.5×6
150 <8
6 SL-U8/1.5-A 4.5 60 85 >8 2 4×2.8×1.6 7.8 7.5×4
100 <8
7 SL-U8/1-C 6 50 95 >8 4 7.6×2.5×3 13.5 5.5×8
80 <8
8 SL-U8/1-B 4.5 40 90 >8 3 5.8×2.5×2.3 10 5.5×6
60 <8
9 SL-U8/1-A 3 30 85 >8 2 4×2.5×1.6 6.7 5.5×4
50 <8

10mmStandard sieve series varieties and main technical parameters：

order
No.		 Main technical parameters Screen area throughput screening efficiency Feed particle size Feed moisture Screen inclination rank Sieve machine external dimensions weight Motor power
Standard series varieties m² T/H % mm % degree segment Length × width × height(m) T. KW
1 SL-U10/2-C 12 300 95 0~200 >8 0° 4 7.6×3.3×3 20.3 7.5×8
400 <8
2 SL-U10/2-B 9 200 90 >8 3 5.8×3.3×2.3 15.2 7.5×6
300 <8
3 SL-U10/2-A 6 150 85 >8 2 4×3.3×1.6 10.2 7.5×4
200 <8
4 SL-U10/1.5-C 9 150 95 >8 4 7.6×2.8×3 15.5 7.5×8
250 <8
5 SL-U10/1.5-B 6.75 120 90 >8 3 5.8×2.8×2.3 11.5 7.5×6
180 <8
6 SL-U10/1.5-A 4.5 80 85 >8 2 4×2.8×1.6 7.8 7.5×4
150 <8
7 SL-U10/1-C 6 60 95 >8 4 7.6×2.5×3 13.5 5.5×8
100 <8
8 SL-U10/1-B 4.5 50 90 >8 3 5.8×2.5×2.3 10 5.5×6
80 <8
9 SL-U10/1-A 3 40 85 >8 2 4×2.5×1.6 6.7 5.5×4
60 <8


13Mm standard sieve series varieties and main technical parameters：

order
No.		 Main technical parameters Screen area throughput screening efficiency Feed particle size Feed moisture Screen inclination rank Sieve machine external dimensions weight Motor power
Standard series varieties m² T/H % mm % degree segment Length × width × height(m) T. KW

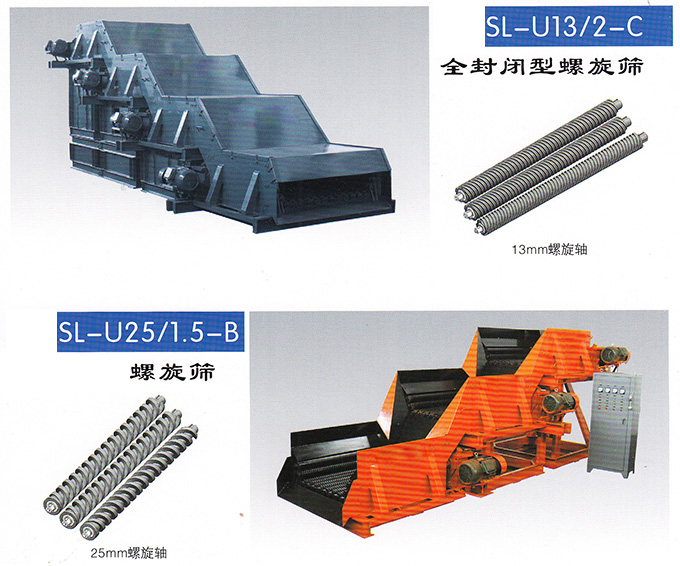

1 SL-U13/2-C 12 350 95 0~300 >8 0° 4 7.6×3.3×3 20.3 7.5×8
450 <8
2 SL-U13/2-B 9 250 90 >8 3 5.8×3.3×2.3 15.2 7.5×6
350 <8
3 SL-U13/2-A 6 200 85 >8 2 4×3.3×1.6 10.2 7.5×4
250 <8
4 SL-U13/1.5-C 9 200 95 >8 4 7.6×2.8×3 15.5 7.5×8
300 <8
5 SL-U13/1.5-B 6.75 120 90 >8 3 5.8×2.8×2.3 11.5 7.5×6
180 <8
6 SL-U13/1.5-A 4.5 80 85 >8 2 4×2.8×1.6 7.8 7.5×4
150 <8
7 SL-U13/1-C 6 80 95 >8 4 7.6×2.5×3 13.5 5.5×8
100 <8
8 SL-U13/1-B 4.5 60 90 >8 3 5.8×2.5×2.3 10 5.5×6
90 <8
9 SL-U13/1-A 3 50 85 >8 2 4×2.5×1.6 6.7 5.5×4
80 <8

25mm、50mmStandard sieve series varieties and main technical parameters

order
No.		 Main technical parameters Screen area throughput screening efficiency Feed particle size Feed moisture Screen inclination rank Sieve machine external dimensions weight Motor power
Standard series varieties m² T/H % mm % degree segment Length × width × height(m) T. KW
1 SL-U25/2-B 9 ≤500 90 0~300 Unlimited 0° 3 5.8×3.3×2.3 13.5 7.5×6
2 SL-U25/2-A 6 80 2 4×3.3×1.6 9 7.5×4
3 SL-U25/1.5-B 6.75 ≤300 90 3 5.8×2.8×2.3 10.3 7.5×6
4 SL-U25/1.5-A 4.5 80 2 4×2.8×1.6 6.8 7.5×4
5 SL-U25/1-B 4.5 ≤150 90 3 5.8×2.5×2.3 9 5.5×6
6 SL-U25/1-A 3 80 2 4×2.5×1.6 5.8 5.5×4

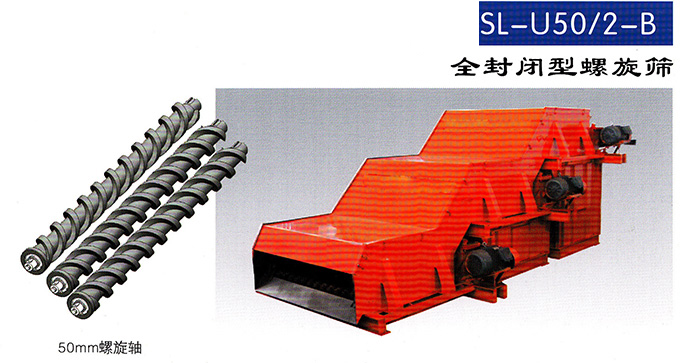

7 SL-U50/2-B 9 ≤700 90 3 5.8×3.3×2.3 13.5 7.5×6
8 SL-U50/2-A 6 80 2 4×3.3×1.6 9 7.5×4
9 SL-U50/1.5-B 6.75 ≤400 90 3 5.8×2.8×2.3 10.3 7.5×6
10 SL-U50/1.5-A 4.5 80 2 4×2.8×1.6 6.8 7.5×4
11 SL-U50/1-B 4.5 ≤200 90 3 5.8×2.5×2.3 9 5.5×6
12 SL-U50/1-A 3 80 2 4×2.5×1.6 5.8 5.5×4

Some combination series varieties and main technical parameters summary table：

order
No.		 Main technical parameters sieve number of segments total segment total throughput screening efficiency feeding
granularity		 Screen surface
area		 feeding
moisture		 Screen surface
inclination
degree		 Sieve machine external dimensions weight Motor power
Standard series varieties mm T/H % Length × width × height(m) T. KW
1 SL-U13.25.50/2-C 13 2 4 ≤400 80 0~300 6 No
Limit
system		 0° 7.6×3.3×3 18.2 7.5×8
25 1 82 3
50 1 83.5 3
2 SL-U13.25.50/1.5-C 13 2 4 ≤200 80 4.5 7.6×2.8×3 13.8 7.5×8
25 1 82 2.25
50 1 83.5 2.25
3 SL-U13.25.50/1-C 13 2 4 ≤80 80 3 7.6×2.5×3 12 5.5×8
25 1 82 1.5
50 1 83.5 1.5
4 SL-U13.25/2-B 13 2 3 ≤400 80 6 5.8×3.3×2.3 13.5 7.5×6
25 1 82 3
5 SL-U13.25/1.5-B 13 2 3 ≤200 80 4.5 5.8×2.8×2.3 10.3 7.5×6
25 1 82 2.25
6 SL-U13.25/1-B 13 2 3 ≤80 80 3 5.8×2.5×2.3 9 5.5×6
25 1 82 1.5
7 SL-U13.50/2-B 13 2 3 ≤400 80 6 5.8×3.3×2.3 13.5 7.5×6
50 1 83 3
8 SL-U13.50/1.5-B 13 2 3 ≤200 80 4.5 5.8×2.8×2.3 10.3 7.5×6
50 1 83 2.25
9 SL-U13.50/1-B 13 2 3 ≤80 80 3 5.8×2.5×2.3 9 5.5×6
50 1 83 1.5
10 SL-U25.50/2-B 25 2 3 ≤500 85 6 5.8×3.3×2.3 13.5 7.5×6
50 1 83 3
11 SL-U25.50/1.5-B 25 2 3 ≤300 85 4.5 5.8×2.8×2.3 10.3 7.5×6
50 1 83 2.25
12 SL-U25.50/1-B 25 2 3 ≤150 85 3 5.8×2.5×2.3 9 5.5×6
50 1 83 1.5
